ALLEN BRADLEY 22B-D4P0N104 1.5kW/2.0HP POWERFLEX 40 AC DRIVE

ALLEN BRADLEY 22B-D4P0N104 (1.5kW/2.0HP) POWERFLEX 40 AC DRIVE

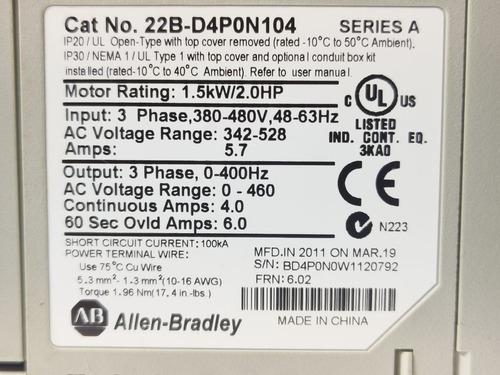

     PRODUCT SPECIFICATIONS:

• Brand: Allen-Bradely

• Model: 22B-D4P0N104

• MPN: 22B-D4P0N104

• Product Name: PowerFlex 40 AC Drive

• Serial No: BD4P0N0W1120792

• Series A

• MOTOR RATING: 1.5kW/2.0HP

• INPUT:

Voltage= 380~480V

Frequency= 48~63Hz

Phase= 3-Phase

AC Voltage Range: 342~528

Amps: 5.7

• OUTPUT:

Voltage Range= 0~460 VAC

Frequency= 0-400Hz

Phase= 3Ph

Continuous Amps: 4.0

60 Sec Ovld Amps: 6.0

• Enclosure Protection Rating IP20

• Short Circuit Current : 100kA
